SonoPad for Ultrasound Stimulator

Model	PZT Element Dimension	Frequency(MHz)	Capacitance(pF)
HM-C2810	Φ28 X 2	1.0±5%	7500±10%	.pdf
HM-C2820	Φ28 X 1	2.0±3%	3700±10%	.pdf
HM-C2015	Φ20 X 1.38	1.5±3%	3200±10%	.pdf
HM-C1610	Φ16 × 2	1.0 ±3%	4200±10%	.pdf
HM-C1620	Φ16 ×1	2.0 ±3%	2100±10%	.pdf

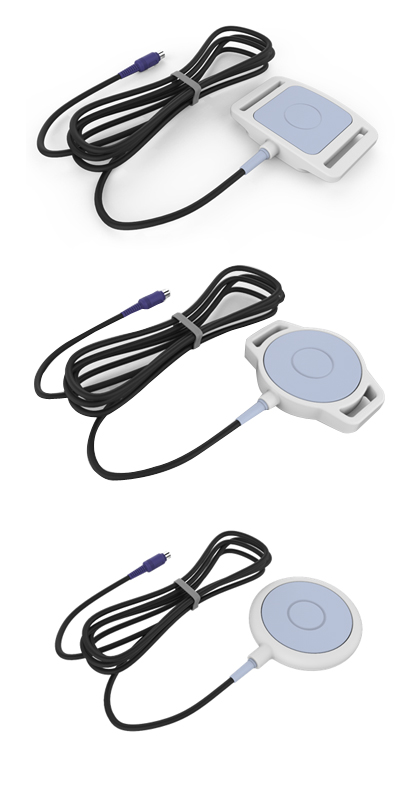

SonoPad Type A	SonoPad Type B	SonoPad Type C

SonoPad Type A with cable and connector	SonoPad Type B with cable and connector	SonoPad Type C with cable and connector

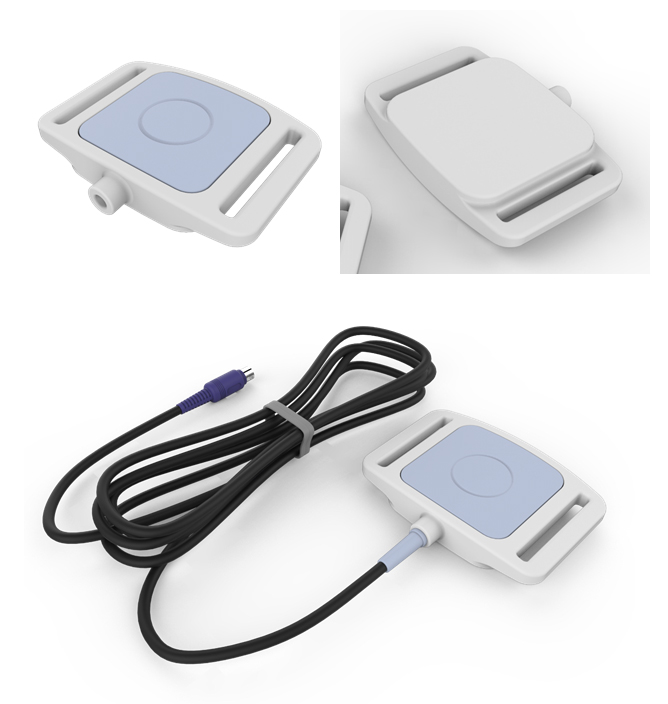

SonoPad: HM C2810-A

SonoPad Type A

Model	PZT Element Dimension	Frequency(MHz)	Capacitance(pF)
HM-C2810	Φ28 X 2	1.0±5%	7500±10%

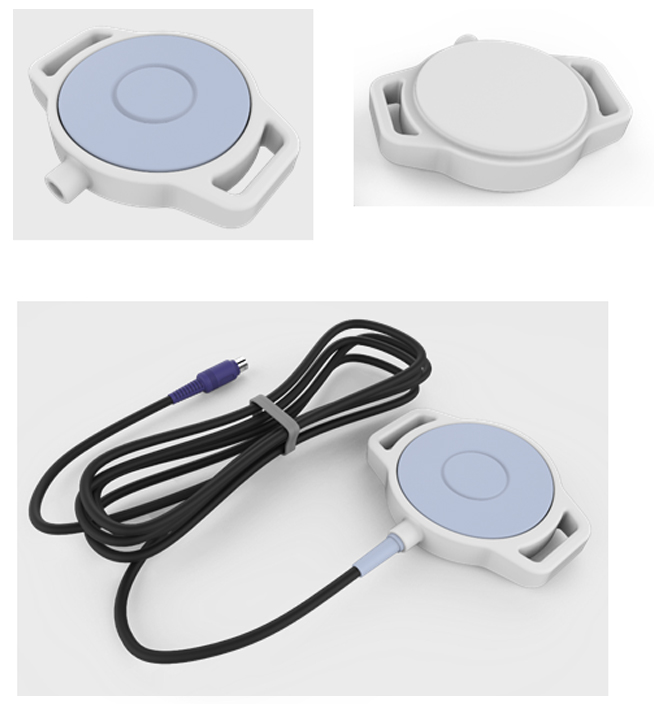

SonoPad: HM C2810-B

SonoPad Type B

Model	PZT Element Dimension	Frequency(MHz)	Capacitance(pF)
HM-C2810	Φ28 X 2	1.0±5%	7500±10%

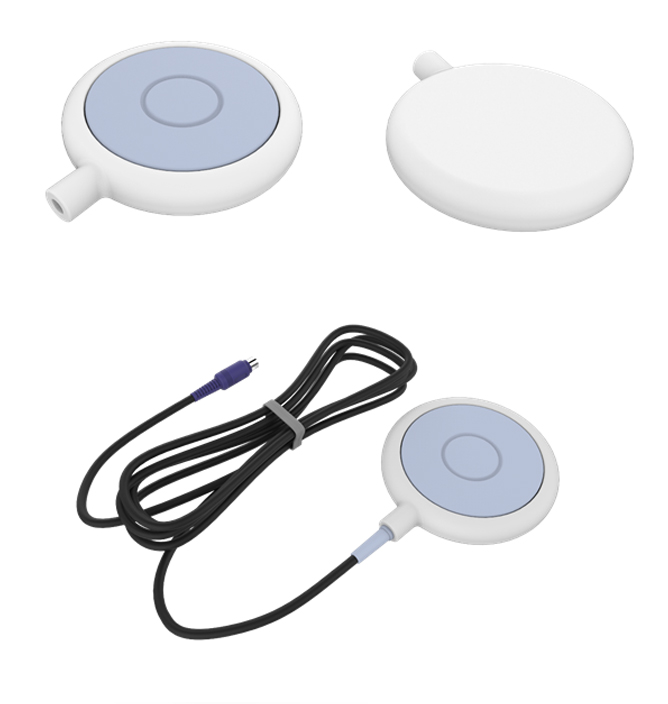

SonoPad: HM C2810-C

SonoPad Type C

Model	PZT Element Dimension	Frequency(MHz)	Capacitance(pF)
HM-C2810	Φ28 X 2	1.0±5%	7500±10%
