Main Feature

Flexural disc transducer

High Power Low Frequency Acoustic Source

Compact and small weight.

Horizontally omni-directional

Can be used as projector at depths of 10m or greater to ensure a sufficient amount of pressure is placed on the transducer due to the flexural motion.

Reliable, robust, high performance, low frequency transducers.

Applications

Low Frequency Sound Source

Ranging Applications

Sound Navigation

Calibration Standard

Technical Specification

Nominal resonant frequency	4KHz (in bending motion)
Integral Amplifier or Tuning Element	No
Receive Sensitivity @ 4KHz	-152 dB re 1V/μPa
Recommended receive frequency range	2KHz ~ 10KHz
Maximum acoustic input@ 4KHz	+ 209.5 dB re 1μPa
Transmit Voltage Response@ 4KHz	+121 dB re 1μPa/V at 1m
-3dB bandwidth	500Hz
Recommended transmit frequency range	3.0 – 5.0kHz, 8.5~10.0kHz
Maximum source level @ 136Hz	+181 dB re 1μPa at 1m
Maximum applied voltage	1,000 Vrms
Horizontal beam pattern	Omni-directional +/- 1dB @ Hz
Vertical beam pattern

Mechanical Specification

Dimensions	Outer diameter: 94mm, Height: 24.6mm
Minimum operating depth	100m
Recommended operating depth	50m
Operating temperature range	-5 to +35°C
Cable	10m standard. Optional extension is available
Connector	Bare ends

Mechanical Drawing

Sensitivity

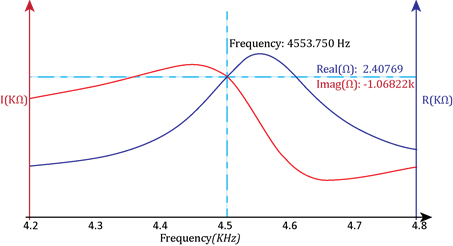

Impedance

Horizontal Beam Pattern @ 4KHz
