HM0200CT

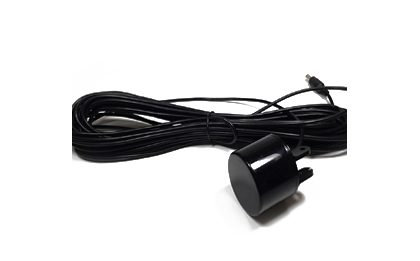

"본 제품은 Acoustic transducer 입니다."

제품설명

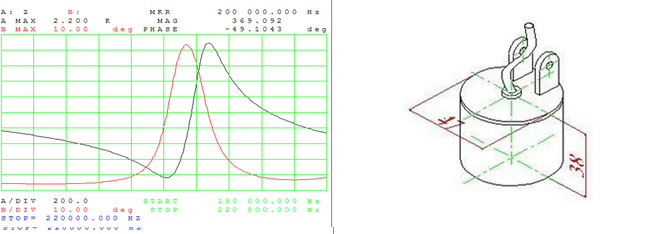

TECHNICAL SPECIFICATIONS
Resonant frequency

200KHz ± 3KHz

Impedance 600Ω ± 30%(in water)
Vertical directivity pattern 22°C
Operating depth 60m
Operating temperature range -20°C ~ 70°C
Housing ABS
Weight (air) incl. cable 273g
