HM0200CF

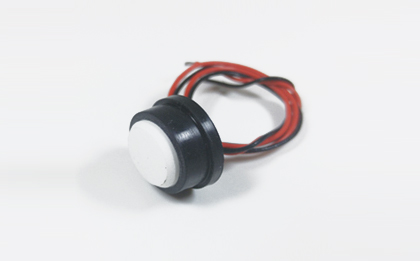

"본 제품은 Acoustic transducer 입니다."

제품설명

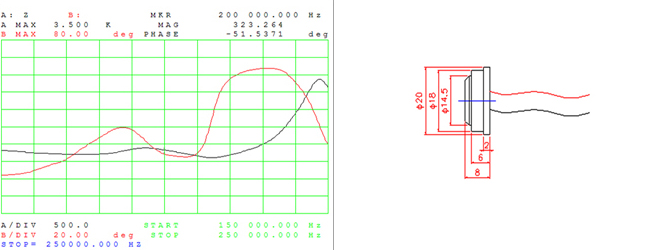

TECHNICAL SPECIFICATIONS
Resonant frequency

200KHz ± 4%

Impedance 150Ω ± 30%
Vertical directivity pattern 12 ± 2°
Operating depth 8cm
Operating temperature range -20°C ~ 70°C
Housing Two single wires
Weight (air) incl. cable 4g
