BlackBoard_FPGA TrainingBd

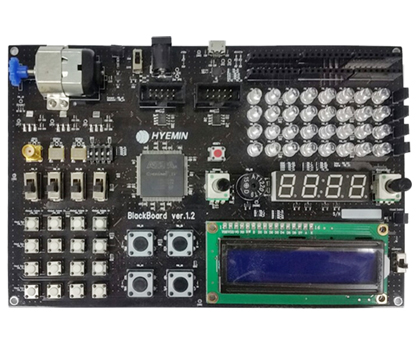

BlackBoard is ready to use developer board from the beginners to advance designers to gain experience in building digital circuits.

The platform is based high-capacity Altera Cyclone IV EP4CE6E22 FPGA.

It can be programmed using general purpose Altera USB-Byte blaster JTAG and also support AS programming. The board contains general outputs like LEDs, Seven Segments, LCD. Most of the general input devices like Slide switch, tact switch, and switch array is provided on board.

The board provides 2 different onboard clocks and connector for external clock. Special devices like buzzer and LCD is also available on board along with USB-UART connector.

For Mechanical control prototype, onboard DC motor, and motor drive is available with the optical connector in front to check the speed of motor.

Altera Cyclone IV: EP4CE6E22C8N

Number of Logic Elements: 6272

Number of Logic Array Blocks - LABs: 392

Number of I/Os: 91 I/O

Maximum Operating Frequency: 200 MHz

Total Memory: 270 Kbit

System Features:

16MB Quad-SPI Flash

USB-JTAG Programming circuitry (USB Micro cable required, NOT INCLUDED).

Powered from USB or any 7V-15V source

On board Clock: 50MHz, 27Mhz, and SMA connector for external clock

System Connectivity:

USB-UART Bridge SPI (By Expansion Port)

Expansion Connectors:

6 Pmod connectors (Each with 8 Pins)

Compatible with Arduino and raspberry Pi board

Interaction and Sensory Devices

4 Tact Switches

4 Slide Switches

One 4x1 DIP Switch array

16 Red LEDS, 16 Green LEDs

One Reset Button

Time display Seven Segment

LCD display with 16x2 characters


DC motor and driver

Opto-coupler for Motor speed

Product Includes:

1) BlackBoard

2) 5V DC adaptor

3) Altera Byte Blaster

4) Software CD:

a.FPGA programmable file



d.Getting started: Tutorial

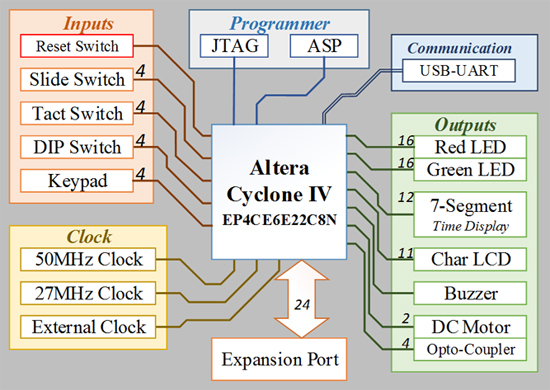

Block Diagram of Black Board
Tutorial Set for Beginners to Advance Designers

Overview of FPGA

Turinig ON LEDs

Switing LED On-Off

Implementing Combinational Circuits 

Implementing Sequential Circuits

Making mixed System

Implementing UART for PC communication

Making SPI interface for other devices.

Communicating to Blackboards

Hardware-software codesign

Implementing Processor in FPGA

Making custom hardware for Processors

Related Education Program:
DD 510 DD 520 DD 530 DD 540
Digital Design Techniques & Methodology Digital Design Techniques & Methodology Digital Design Techniques & Methodology Digital Design Techniques & Methodology
VHDL for FPGA Design (I) VHDL for FPGA Design (II) VHDL for FPGA Design(III) VHDL for FPGA Design(IV)
Beginners Introductory level Intermediate level Advanced Level

Combinational and Sequential Logic Design for PLDs and ASICs,

Design and implement fundamental structures

Design and implement synchronous FSM

Designing with FPGA

VHDL concepts and constructs essential for FPGA design

Write VHDL for RTL synthesis

Targeting code to an FPGA device

Test benches

Tool flow from VHDL through simulation, synthesis and PnR

Overview of ASIC and FPGA including a survey of state of the art devices

Effective Design methodologies and flows

Advance concepts of hardware simulation and synthesis

Introduction to Hardware-Software Co-design

VHDL coding for complex FPGA and ASIC design

Sophisticated Test benches

Coding hierarchical designs using multiple VHDL design libraries

Writing re-usable, parameterisable VHDL
