HM-AOMT

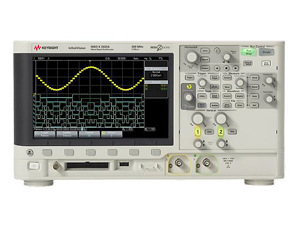

agilent dsox2012a oscilloscope
㈜혜민의 HM-AOMT는 초음파 장비의 성능 평가를 위한 3차원 음장 측정 수조입니다.
4 자 유도를 활용한 3D 데이터 획득 및 오실로스코프와 펑션 제너레이터와의 동기화로 인하여 보다 정확한 데이터를 획득 할 수 있습니다.
IEC 60601 기준 필수 측정 항목인 Acoustic output table을 확인 할 수 있는 알고리즘을 제공 합니다.
HM -AMOT는 초음파 발생장치의 빔 패턴 , 음압 등을 측정 할 수 있는 3차원 음장 측정 장비입니다 .
사용자 편의성 위주로 제작 되어 측정 설정 뿐만 아니 라 검색 및 리포트 작성에 많은 시간을 절약 할 수 있으므로 귀사의 생산성 향상에 도움이 됩니다 .
HM-AMOT 에서 제공되는 소프트웨어를 활용 하여 실 시간 플롯 , 자동화된 음장 측정 기술로 인하여 IEC 60601-2-37 의Acoustic output table에 포함되는 모든 항목을 측정 할 수 있습니다 .
Productivity enhancements to measurement setup, scanning, and reporting
Compatible with Windows 7
Real-time plotting to confirm optimal measurement set-up early
Automated diagnostic and physiotherapy reporting tables compliant with the latest IEC standards
Mechanical improvements to advance the positioning accuracy and reliability
Matlab R2017a interface for external software control
SmartSCAN to enable forward and reverse scanning to reduce scanning time
Over 100 measurement parameters available
Engineering/Product Development: 프로토 타입 음파변환기의 성능평가 Beam Dimensions Focal Zone Location and Size Pulse Amplitude, Spectrum, Center Frequency an Bandwidth Pitch-Catch or Pulse Echo Measurement Modes
Government Compliance Testing: device compliance 에 필요한 데이터를 수집합니다. HM-AOMT는 진단용 초음파 장비에 대한 Acoustic output table을 제공 합니다.
Axes: 3-axis (standard); 6-axis (optional)
Scan step resolution: 0.01 cm
Firing orientation: any angle (with angular positioner option)
Frequency range: 10 Hz to 60 MHz
Size: 90 x 130 x 102 cm
Travel: 53 x 65 x 40 cm
Software: HM-AOMT version 1.1
Maximum Speed: 11 mm per second
Measure, calculate and plot pulse waveform and pulse intensity integral plots
Intensity: pulse average(Isppa), temporal average(Ispta), pulse duration
Mechanical Index
In-water and deratedintensity values
Pressure: positive and negative peak values
Acoustic power by planar integration
Beam dimensions (1 and 2 dimensions)
Center frequency and bandwidth
Compute Effective Radiated Area (ERA)
Compute Beam Non-Uniformity Ratio (BNR)
Compute Effective Radiated Area (ERA)
Compute Beam Non-Uniformity Ratio (BNR)
HM-AOMT | agilent dsox2012a oscilloscope |

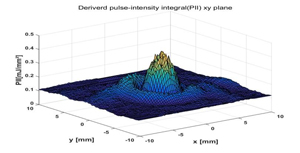

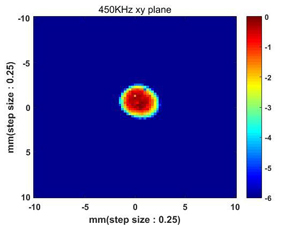

XY-평면주사결과 | 6dB 초점영역평면그래프 |
Angular positioner (AP02)
Temperature Probe compatible with HM-AOMT SW (USB)
AQUAS water conditioning system

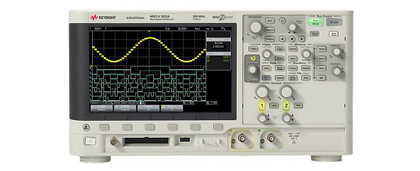

Agilent 2012A oscilloscope
Hydrophones
Pulse Check Source PCS-1000

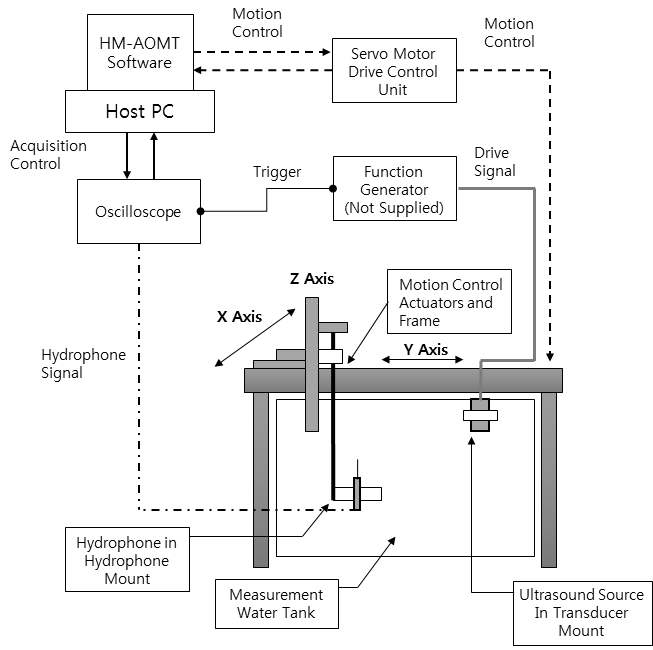

사용자 편의성을 위하여 HM-AOMT의 구성 요소가 모두 조립되어 배송됩니다. 사용 전 모 든 구성 및 조립 유무를 확인하시기 바랍니다.
Description | Figure | Quantity |
---|---|---|
Water Tank | - |
1 |
Fully assembled frame with servo motor control and wired motion actuator system | - | 1 |
Servo Motor Drive control Unit Door Handle | - | 1 |
Oscilloscope | - | 1 |
Function | - | 1 |
Host PC | - | 1 |
PC Monitor | - | 1 |
HM-AOMT Software Ver.3.0 | - | 1 |
Hydrophone rod holder | 1 | 1 |
2-axis of rotation Transducer Mount | 2 | 1 |
Water Treatment System complete with deionisation cartridge and hoses | - | 1 |

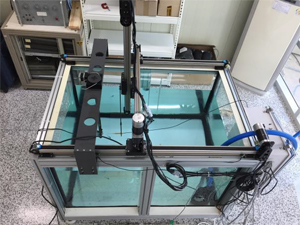

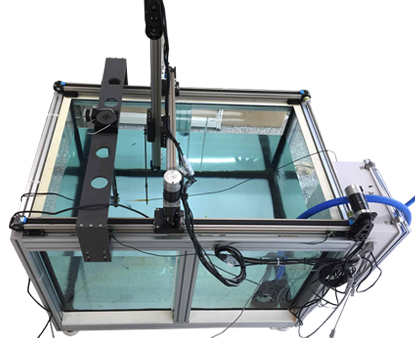

초음파 측정 수조는 가로*세로*높이 80 x 120 x 80 cm의 유리 수조를 알루미늄 프로파 일로 감싸는 형태로 제조 되었습니다. 알루미늄 프로파일을 포함한 수조의 크기는 가로*세 로*높이 90 x 130 x 102 cm입니다.
해당 제품은 Moonwalker Servo motor를 사용하여 제공되는 툴은 사용하지 아니하며, 직 접 제작한 소프트웨어를 사용하여 제어 합니다. 해당 제품은 모터 구동 및 제어장치 관련 전원 공급 장치가 포함되어 있습니다. 3개의 Servo motor는 서로 다른 제어기를 구성하고 있으며 하나의 Control tool인 I-motion을 이 용하여 3개의 Servo motor를 제어하며 비상 정지를 위한 비상 정지 스위치를 포함 합니다.
해당 Control unit은 상시 전원이 공급 되고 있으며, Control box 완전 방수가 되지 않습 니다. 따라서 Control box의 경우 물의 직접적인 수원지 근처는 피하도록 합니다.
HM-AOMT의 시스템에는 비상 정지(E-STOP) 스위치가 장착되어 있습니다. 이 스위치는 항상 사용자 가까이에 배치할 수 있도록 하여야 하며 해당 케이블은 Control box에 연결 됩니다.
해당 스위치를 누르면 활성화 된다. 빨간 색 버튼을 눌러 좌측으로 회전 시켜 비상 정지 를 해제 할 수 있습니다.
해당 수조에는 탈염수가 채워져 있어야 합니다.
TEST를 진행 할 때마다 수조의 물은 다시 채워져야 합니다. 수조의 채워진 물을 가는 일정은 일반적으로 수조의 크기, 위치에 따라 달라집니다. 하지만 매 시험 때 마다 일정한 결과를 획득하기 위해선 TEST를 진행 할 때마다 물을 새로 채우는 것이 좋습니다. 일반 적 으로 TEST 하루 전 물을 새로 채운 후 DEGASSING PUMP를 이용하여 물속의 작은 미세 기 포들을 없애는 작업이 필요로 합니다.
HM-AOMT는 Agilent Technologies사의 디지털 오실로스코프에서 작동하도록 설계 되어 졌습니다. USB 통신을 활용 하여 모든 데이터를 PC로 받아 올 수 있다. 다른 오실로스코프 또한 지원이 가능 하다. 자세한 내용은 문의 하도록 바랍니다
해당 PC는 HM-AOMT을 작동하기 위해 필요한 PC이다. 해당 PC에는 HM-AOMT 소프트 웨어가 사전에 설치되어 있습니다. 해당 PC는 Servo motor 제어를 위한 RS-232 cable과 Oscilloscope, function generator 제어를 위한 usb cable이 연결 되어 집니다.
3차원 초음파 성능평가 시스템은 MATLAB 2017a 기반으로 만들어진 소프트웨어가 HOST
PC에 설치되어 있습니다. 만약 해당 코드를 수정할 계획이 있다면 MATALB 2017a 버전을
활용하여 수정 할 수 있습니다. 해당 프로그램을 사용하기 전 오실로스코프 및 RS-232 통신
을 위해 몇 가지 프로그램을 설치하여야 합니다.
- agx2k3k_setup.exe
- driver_ivi_matlab_AgInfiniiVision-x64_2.1.9.0.msi
- Keysight_Instrument_Control_Bundle_12.2016.exe
- 11n_USB(2013_7_03).part1-> setup.exe
Description | Quantit y |
Manufacture r |
Part number | Supplier |
---|---|---|---|---|
Anodised aluminum gantry framework and fixings | 1 |
Minitec | n/a | Moonwal ker |
Water tank | 1 | Moonwalker | n/a | Moonwal ker |
Linear actuators | 4 | Parker | n/a | Moonwal ker |
Servo motor on linear axes | 3 | Parker | SDC2420U-B | Moonwal ker |
Servo motor controllers | 3 | Parker | SDC2420U-B | Moonwal ker |
Servo motor power supply | 1 | Parker | n/a | Moonwal ker |
Linear magnetic encoder scales | 3 | Moonwalker | LM10 | Moonwal ker |
Linear magnetic encoder read | 3 | Moonwalker | LM10 | Moonwal ker |
head Reference marker for Linear magnetic encoder scalest | 3 | Moonwalker | LM10 | Moonwal ker |
