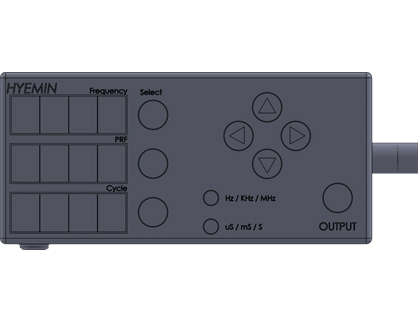

Pulse type signal generator for implementing as a component of ultrasound system or sonar system which can control the frequency, pulse width, PRI(pulse repetition rate.
Frequency range selectable
Pulse Width(PW) selectable
Pulse Repetition Interval(PRI) selectable
Predefined amplitude level
Sonar
Radar
ATF(Acoustic Test Facilities)
Ultrasound Thickness Gauge
NDT Pulser and Receiver
Product |
Carrier Frequency (F) | Number of cycle (n) within a pulse | Pulse Repetion Interval(PRI) | Amplitude |
---|---|---|---|---|
HMSG-3100 |
1Hz to 100KHz |
1~PRI*F |
2*1/F~1000*1/F |
Predefined amplitude level for TTL, CMOS, and Power amplifier |
HMSG-4100 |
1KHz to 10MHz |
1~PRI*F |
2*1/F~1000*1/F |
The same as the above |
HMSG-5100 |
1MHzto 1000MHz |
1~PRI*F |
2*1/F~1000*1/F |
The same as the above |
Power source for the all models is DC 3.5~5V.
The case of the all models is shielded metal case.

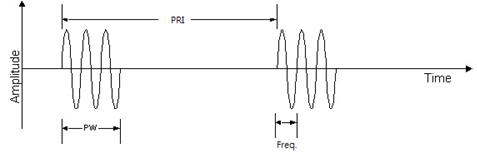

1. First determine operating frequency F: T = 1/F.
2. Determine PRI
3. Determine the number of cycle within the pulse: n = PW/T where PW= Pulse width.
