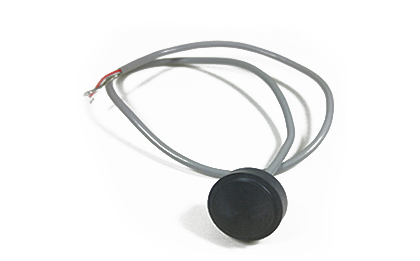

HM1000CA
"본 제품은 Acoustic transducer 입니다."
제품설명
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Resonant frequency | 500KHz ± 3% |
| Impedance | 500Ω ± 30% |
| Vertical directivity pattern | 6°C |
| Operating depth | 7cm |
| Operating temperature range | -20°C ~ 70°C |
| Housing | ABS |
| Weight (air) incl. cable | 116g |
