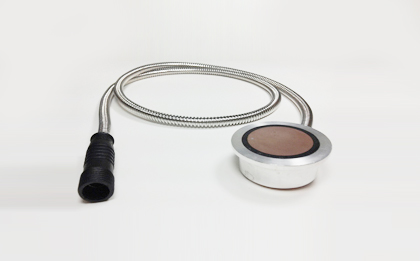

HM0500CF
"본 제품은 Acoustic transducer 입니다."
제품설명
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Resonant frequency | 500KHz |
| Impedance | 150Ω ± 30% |
| Vertical directivity pattern | 8°C |
| Operating depth | 0.02 ~5m |
| Operating temperature range | -20°C ~ 70°C |
| Housing | Aluminum Alloy |
| Weight (air) incl. cable | 154g |
